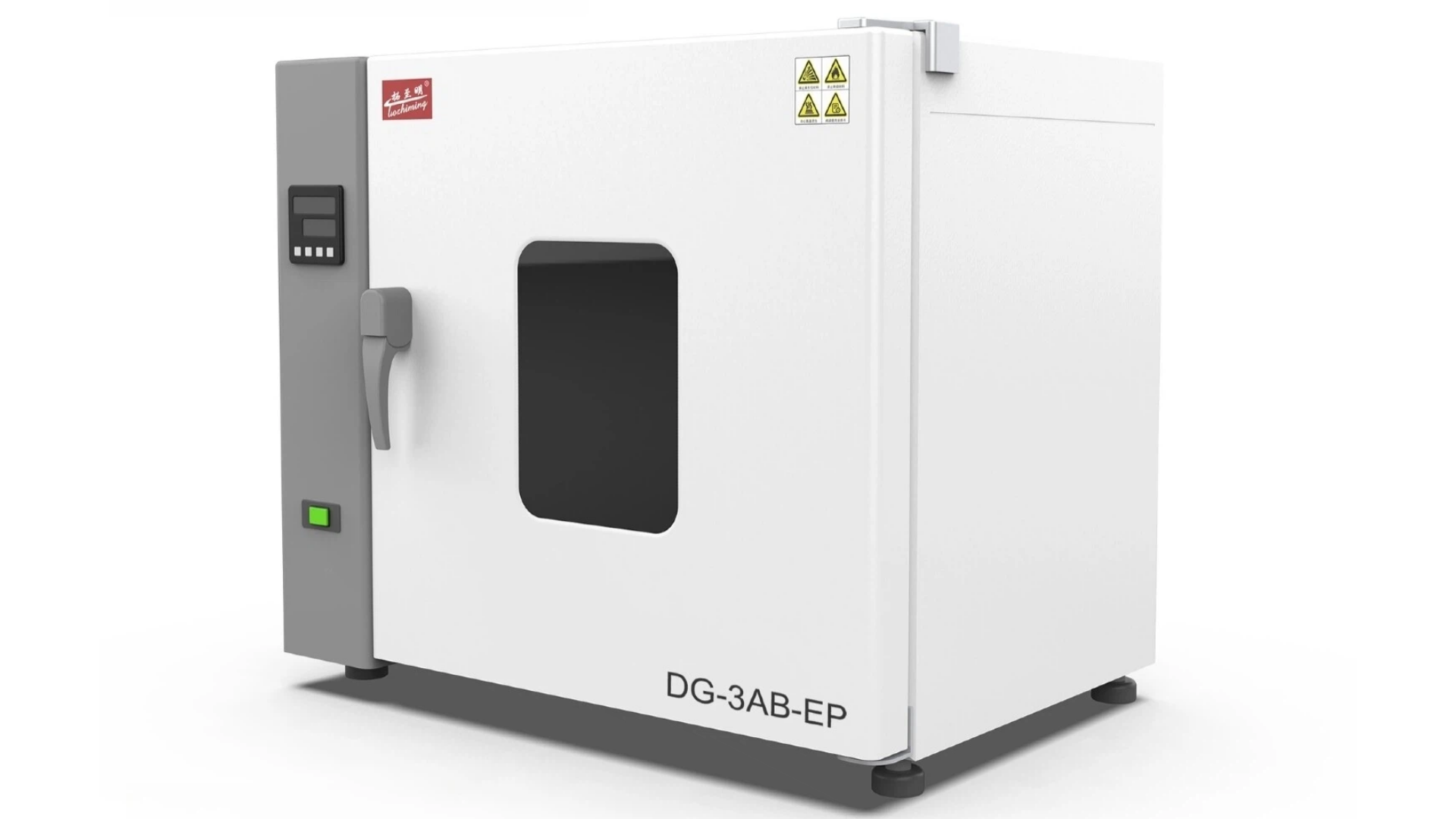

DG Series
|
DG-0AB
|
DG-1AB
|
DG-2AB
|
DG-3AB
|
|
Heater
|
Stainless Steel Heating Tube
|
Nickel-Chromium Alloy Heating Wire
|
|
Power
|
1.2KW
|
1.6KW
|
2.0KW
|
4.0KW
|
|
Internal Volume
|
43L
|
71L
|
136L
|
225L
|
|
Voltage
|
220V
|
|
Working Dimensions (W×D×H) mm
|
350×350×350
|
450×350×450
|
550×450×550
|
600×500×750
|
|
Overall Dimensions (W×D×H) mm
|
630×350×555
|
730×530×655
|
830×625×755
|
860×865×995
|
|
Package Dimensions (W×D×H) mm
|
749×603×705
|
849×603×810
|
950×703×910
|
985×766×1175
|
|
Net Weight / Gross Weight
|
33/37KG
|
45/50KG
|
62/68KG
|
77/96KG
|
|
Temperature Resolution
|
0.1°C
|
|
Temperature Fluctuation
|
±1.0°C
|
|
Temperature Distribution Accuracy
|
±2.5%
|
|
Features
|
The horizontal wind circulation structure is beneficial to air mixing, the space utilization rate is high
the drying speed is fast
|
|
Mode
|
Forced air supply
|
|
Exhaust Vent
|
Inner diameter 28mm*1, back; Top test hole
|
|
Temperature Control Range
|
RT+10~250°C
|
|
Temperature Control Method
|
Digital tube dual-row PID
|
|
Corrosion-resistant Coating (optional)
|
Anti-corrosion spray treatment (Type -EP)
|
|
WG Series
|
WGI-30B
|
WGI-45B
|
WGI-65B
|
WGI-125B
|
WGI-230B
|
WGI-625B
|
|
WGII-30BE
|
WGII-45BE
|
WGII-65BE
|
WGII-125BE
|
WGII-230BE
|
WGII-625BE
|
|
Heater
|
Stainless Steel Heating Tube
|
Nickel-Chromium Alloy Heating Wire
|
Stainless Steel Heating Tube
|
|
Power
|
0.8KW
|
1.2KW
|
1.6KW
|
2.3KW
|
3.0KW
|
5.0KW
|
|
Internal Volume
|
30L
|
45L
|
65L
|
125L
|
230L
|
625L
|
|
Voltage
|
220V
|
380V
|
|
Working Dimensions (W×D×H) mm
|
310×310×310
|
350×350×350
|
400×360×450
|
500×450×550
|
600×500×750
|
660×760×1250
|
|
Overall Dimensions (W×D×H) mm
|
428×505×710
|
468×538×753
|
518×550×860
|
617×639×953
|
735×700×1220
|
900×960×1840
|
|
Package Dimensions (W×D×H) mm
|
552×578×840
|
592×618×880
|
642×628×980
|
742×718×1080
|
898×814×1347
|
1051×1060×1949
|
|
Net Weight / Gross Weight
|
33/37KG
|
37/43KG
|
43/49KG
|
60/66KG
|
84/100KG
|
113/137KG
|
|
Temperature Resolution
|
0.1°C
|
|
Temperature Fluctuation
|
±1.0°C
|
|
Temperature Distribution Accuracy
|
±2.5%
|
|
Features
|
High precision, high efficiency, safety, wide range,
vertical double duct air jacket, turbine centrifugal forced air supply, more uniform temperature,
Type BE: Over-lift preventer, speed regulating fan (Type230/625 constant speed fan)
|
|
Mode
|
Double duct forced convection
|
|
Exhaust Vent
|
Inner diameter 28mm*1, Top (Type230/625: Inner diameter 28mm*2)
|
|
Temperature Control Range
|
RT+10~300°C
|
|
Temperature Control Method
|
Type B: Digital tube dual-row PID; Type BE: Liquid crystal double-row PID
|
|
Corrosion-resistant Coating (optional)
|
Anti-corrosion spray treatment (Type -EP)
|
